Morse 160 Hand Trucks

Request A Quote

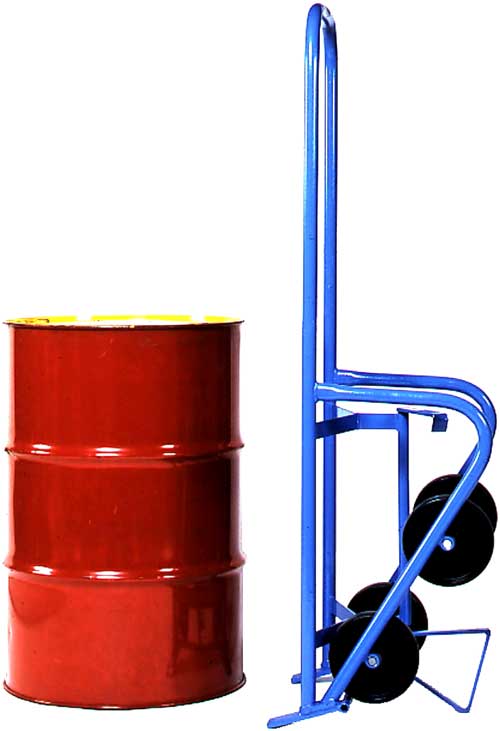

Morse 160 Drum Truck

For good reason, model 160 4-Wheel Industrial Drum Truck is Morse's best selling drum truck. The innovative design provides extra safety, ease of use, and versatility. With this ergonomic drum truck you can load and unload a heavy drum with ease and move a drum quickly and easily in narrow aisles while keeping your hands protected inside the U-shaped Knuckle Saving Handle. Even pour a drum into a 5-gallon pail. The four wheels fully support the drum's weight, so maneuvering is easy, it turns on a dime and you don't have to support or balance the load.

With an industrial drum truck, you engage the upper drum rim and pull the handle to tilt the drum toward you. Then the two "toes" of the drum truck fit under the curvature of your drum to support it from underneath. No need to tip the drum away from you to slide a base plate underneath. You can then move a drum onto and off pallets, and position a drum for dispensing. When you're done, the drum truck stands upright by itself for space saving storage.

With an industrial drum truck, you engage the upper drum rim and pull the handle to tilt the drum toward you. Then the two "toes" of the drum truck fit under the curvature of your drum to support it from underneath. No need to tip the drum away from you to slide a base plate underneath. You can then move a drum onto and off pallets, and position a drum for dispensing. When you're done, the drum truck stands upright by itself for space saving storage.

Request A Quote

BDI

Top Rim Hook

Engage the upper drum rim with the chime hook of the drum truck.

Drum Truck Standing By Itself

Stands Alone

Holds full weight of drum. No need to support or balance drum.

Specifications


ModelCapacity
(lbs.)
Drum SizeDrum
Length
WheelsWheel
Base
FrameWeight
(lbs.)
Quote
Form
1601,00014"-28"ø31"-41"(4) 8" Poly20"63"75Quote
Model160
Capacity1,000 lbs
Drum Size14"-28"ø
Drum Length31"-41"
Wheels(4) 8" Poly
Wheel Base20"
Frame63"
Weight75 lbs
Quote FormQuote

Standard Features


  • Easily move and turn drum
  • Pour barrel or drum
  • Pass through narrow aisles
  • Move drum onto and off pallets
  • Stands alone on 4 wheels
  • Chime hook assists in pulling drum
  • U-shaped Knuckle Saving Handle
  • Extendable support prop stabilizes truck
  • Four 8" MORTUF polyolefin roller bearing wheels
  • Wide, rounded forged steel toes

Options


Pneumatic Tires

Pneumatic Wheels

Stainless Drum Truck

Stainless Steel

Strap Kit

Strap Kit

Spark Resistant Parts

Spark Resistant
