Roto-Grip II Telescopic

Request A Quote


Roto-Grip II

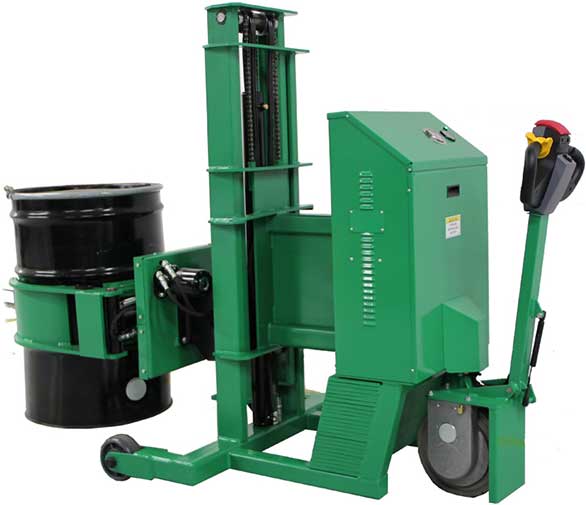

Valley Craft’s Telescoping Power Drive Roto-Grip™ II Drum Handler is counter-weighted and designed to butt directly up against pallets and containment skids, features a lift height of 78 or 90 in., can easily maneuver grades up to 5-degrees, turning radius of 71 in., hydraulic clamping jaws allow for 360-degrees rotation, telescoping mast allows for easy access in and out of standard doorways, variable drive speed (2.5 mph factory set max), 24-volt DC system and battery indicator gauge, two 12-volt deep-cycle batteries and 12V AC charger and a 1,000 lb. load capacity. Curtis Tm-1 Tiller head equipped with emergency reverse switch, electronic throttle, rocker switches, horn, and gas spring to automatically return head to upright position when not in use.

Curtis Tiller Head

Curtis TM-1

With emergency reverse switch, electronic throttle, rocker switches, horn, and gas spring.

Hydraulic Clamping Jaws

Hydraulic Jaws

Hydraulic clamping jaws allow for 360-degrees rotation and quick securing of drums.

Telescopic Mast

Telescopic Mast

Telescoping mast allows for easy access in and out of standard doorways.

Telescopic Mast

Counter Weighted

Counter-weighted design allows it to butt directly up against pallets & skids.

Specifications


ModelCapacity
(lbs.)
Lift*
Height
MastFootprint
L x W
Drum
Sizes
SpeedTurning
Radius
Weight
(lbs.)
Quote
Form
Col.Ext.LiftRotate
F89529100012"-85"78"90"79" x 34"18"-24"ø3.4"/s6 RPM71"1619Quote
*Note: Lift height measured from center of clamp to floor.
ModelF89529
Capacity1,000 lbs
Lift Height73"
Mast Col.54"
Mast Ext.90"
Footprint79" x 34"
Drum Sizes18"-24"ø
Lift Speed3.4"/sec
Rotate Speed6 RPM
Turning Rad.72"
Weight1,619 lbs
Quote FormQuote

Standard Features


  • Lifts, rotates, dumps and palletizes
  • Works with most steel, fiber, & plastic drums & cylinders
  • Telescoping mast allows for easy door access
  • Eliminates the need for a forklift
  • Designed to butt directly up against pallets & skids
  • Comes with a keyed On/Off switch
  • Variable drive speed (2.5" mph factory set max)
  • 24-volt DC system and battery indicator gauge
  • Can easily handle grades up to 5°
  • Fully adjustable and programmable controls
  • Curtis TM-1 Tiller Head equipped with:
    • Emergency reverse switch
    • Electronic throttle
    • Rocker switches
    • Horn
    • Gas spring
