Vertical Lift Drum Pourer

Request A Quote

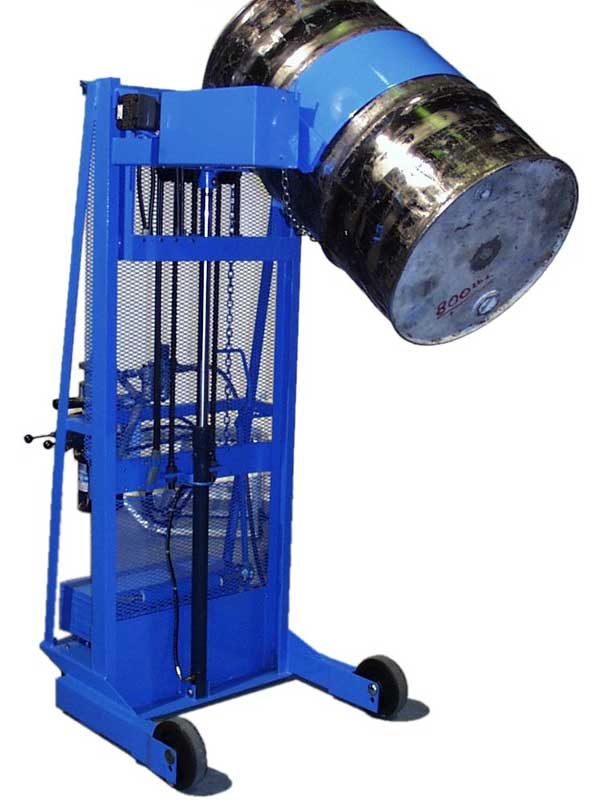

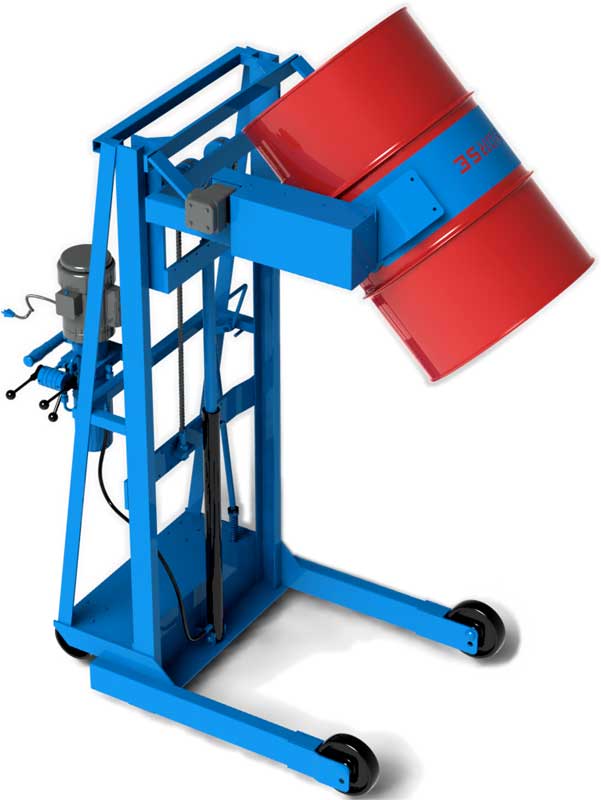

Morse 510
Single Stage Model

Morse Vertical-Lift Drum Pourers make it simple to raise and pour a heavy drum. You control the drum pouring angle and height while you dispense. The compact base and quality components of this Vertical-Lift drum handler make it easy to maneuver. Pour your drum with a drum faucet or drum cone in place. Single-Stage Vertical-Lift Drum Pourers allow you to pour a drum up to 60" high, while the Two-Stage models pour up to 106" high. Both have a full drum capacity of 800 lbs. and a half-full drum capacity of 500 lbs.

Drum pourers are available with powered lift and tilt, powered lift and manual tilt or manual lift and manual tilt. Equipped with the MORCINCH drum handling system, quickly and easily secure a 22" to 23.5" drum for handling and pouring.

MorCinch

Drum Holder

Manually tighten the MORCINCH drum holder quickly and easily around your drum

360 degree rotation

360° Rotation

Continuously rotate your drums, end-over-end, 360° in either direction

Specifications


ModelLift
Height
MastDrum Cap. (lbs)Turning
Radius
Footprint
L x W
Drum
Sizes
Quote
Form
Col.Ext.FullHalf-Full
51060"78"78"80050061"50.5" x 35.75"22"-23.5"øQuote

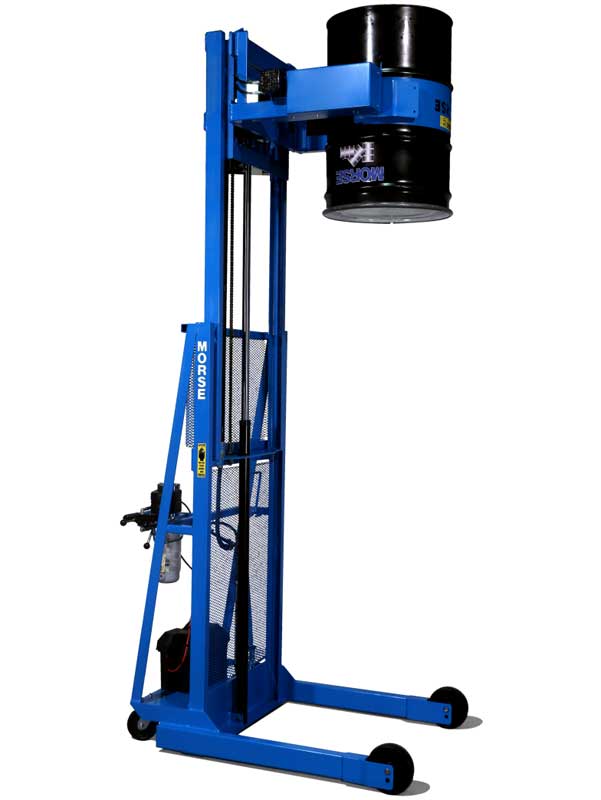

520106"78"130"80050068.25"57.5" x 40.25"22"-23.5"øQuote
Model510520
Lift Height60"106"
Mast Col.78"
Mast Ext.78"130"
Full Drum Cap.800 lbs.
Half-Full Drum Cap.500 lbs.
Turning Radius61"68.25"
Footprint50.5"L x 35.75"W57.5"L x 40.25"W
Drum Sizes22"-23.5"ø
Quote FormQuoteQuote

Standard Features


  • Lift, move and control dispensing of your drum up to 106"
  • You control the lifting height and pouring angle
  • Power Lift and Tilt Options
  • Available built-in weighing capability
  • 360° Tilt Control in either direction
  • Models available with spark resistant parts
  • Automatically adjusts for 22” to 23.5” diameter drum
  • Accepts Diameter Adaptors for your smaller drum
  • Flexible cover on the cinch chain

Options

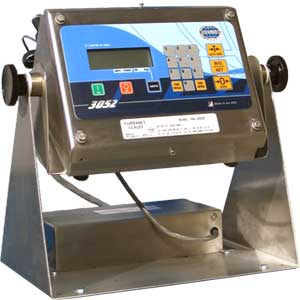

Scale

Scale

Counter Balanced

Counter Balanaced

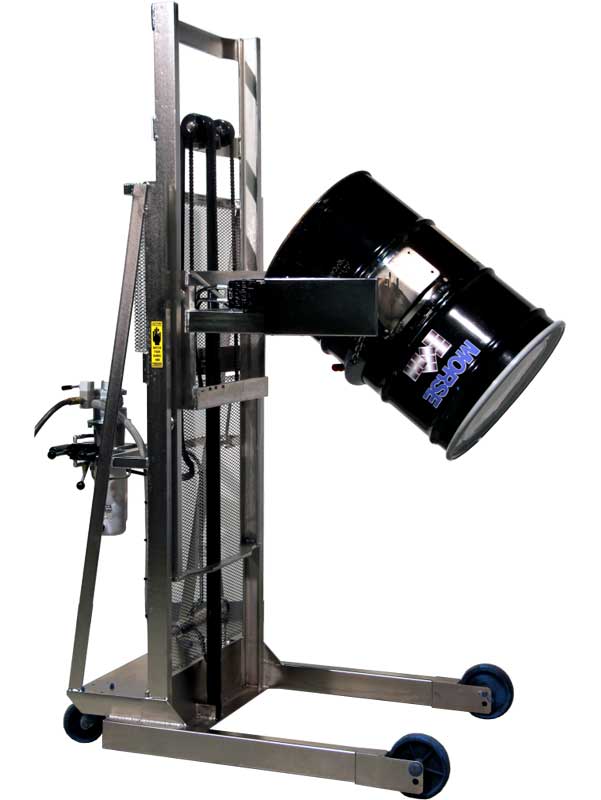

Stainless Steel

Stainless Steel

Green Battery

Green Battery

Rim Clamp

Rim Clamp

Bracket Assembly

Backet Assembly

Diameter Adapter

Diameter Adapter

Web strap

Web Strap

Tilt Brake

Tilt Brake

Tilt Brake

Spark Resistant Parts

3 Piece Holder

3 Piece Holder

Idler Attachment

FRL Kit for Air Motor
